Material: SUS304
Medium: Liquid, gas, steam
Output: Pulse, 4-20mA, RS485
Power: 24VDC
Type：Wafer type or flange type
Categories: Gas Flow Meter

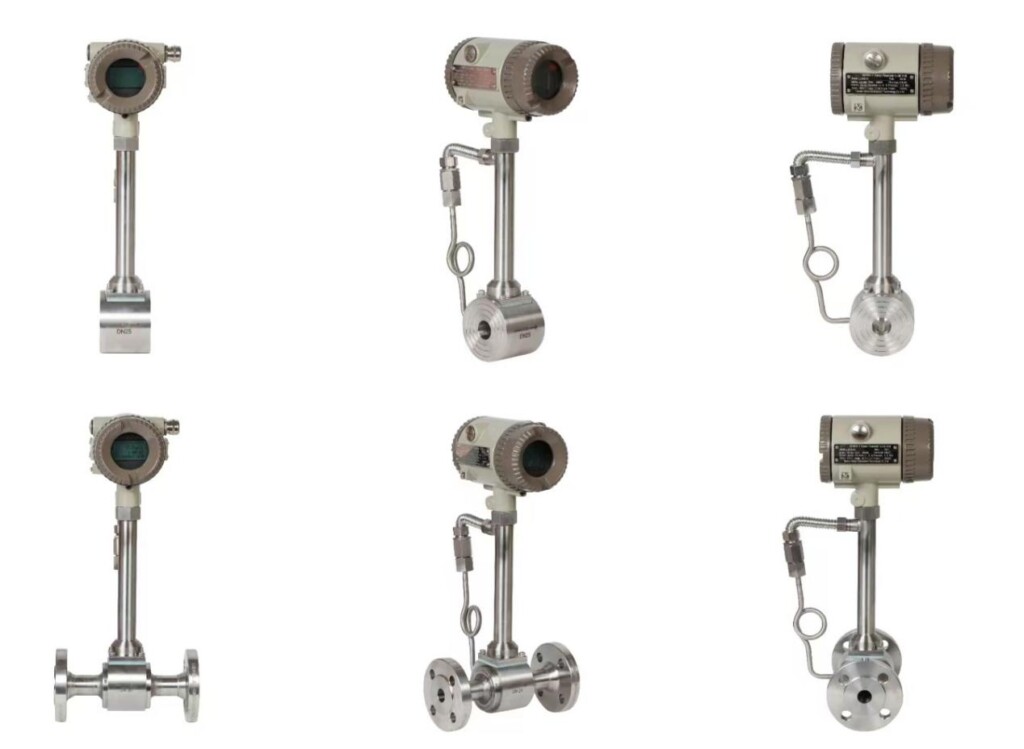

LUGB vortex flow meters are widely used in the measurement and control of superheated steam, saturated steam, compressed air and general gases (oxygen, nitrogen, hydrogen, natural gas, gas, etc.), water and liquids (such as water, gasoline, alcohol, benzene, etc.) in petroleum, chemical, metallurgy, heat, textile, paper and other industries.
1) Simple structure,and no moving wear parts.
2) High measuring precision,and high reliable,no need on-site commissioning.
3) It can transport flow signal from long-distance,networking with computers,and realize centralized management.
4) The amplification board use unique design,and this flow meter can used to measure gas and liquid.
5) It is suitable for measuring superheated steam,saturated steam,compressed air and general gas,water and liquid.
| Material | Stainless steel |
| Accuracy | 1.5% |
| Diameter (MM) | DN15-DN300 |
| Output | Standard : 4-20mA / Pulse. Option: RS485 |
| Press | 1.6Mpa |
| Power | 24VDC |
| Connection | Flange |
| Protection level | IP65 |
| Temperature | Standard: 250℃, Option: 250-320℃, more 350 ℃ |
| Compensation | Has temp. and pressure sensor, so it can temp. and pressure compensation automatically. |
| Model | Diameter
(mm) |
Liquid | Gas |
| Flow range
(m3/h) |
Flow range
(m3/h) |
||
| LUGB-15 | 15 | 0.5-5 | 2.5-20 |
| LUGB-20 | 20 | 0.8-10 | 4-36 |
| LUGB-25 | 25 | 1.2-12 | 8.8-55 |
| LUGB-32 | 32 | 2-20 | 10-150 |
| LUGB-40 | 40 | 3-35 | 27-205 |
| LUGB-50 | 50 | 5-50 | 35-380 |
| LUGB-65 | 65 | 7-70 | 80-800 |
| LUGB-80 | 80 | 10-100 | 86-1100 |
| LUGB-100 | 100 | 16-180 | 133-1700 |
| LUGB-125 | 125 | 22-230 | 150-2000 |
| LUGB-150 | 150 | 30-400 | 347-4000 |
| LUGB-200 | 200 | 50-700 | 560-8000 |
| LUGB-250 | 250 | 80-1000 | 890-9000 |
| LUGB-300 | 300 | 110-1500 | 1500-10000 |

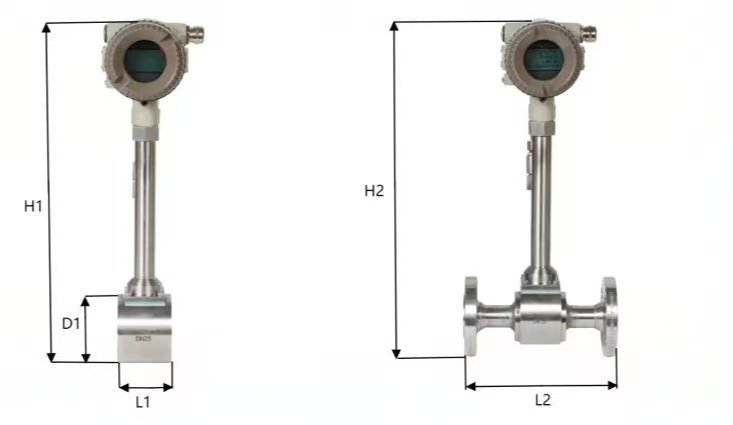

| Diameter | Wafer type | Flange type | |||
| DN | L1 | D1 | H1 | L2 | H2 |
| 15 | 66 | 66 | 420 | 200 | 430 |
| 20 | 66 | 66 | 420 | 200 | 436 |
| 25 | 66 | 86 | 420 | 200 | 440 |
| 32 | 70 | 86 | 420 | 200 | 450 |
| 40 | 75 | 86 | 420 | 200 | 460 |
| 50 | 75 | 92 | 425 | 200 | 470 |
| 65 | 75 | 105 | 440 | 200 | 490 |
| 80 | 84 | 120 | 460 | 200 | 500 |
| 100 | 90 | 140 | 480 | 200 | 510 |
| 125 | 100 | 165 | 500 | 200 | 550 |
| 150 | 120 | 190 | 520 | 220 | 590 |
| 200 | 150 | 240 | 570 | 220 | 630 |
| 250 | 160 | 290 | 630 | 250 | 695 |
| 300 | 160 | 340 | 680 | 300 | 740 |
