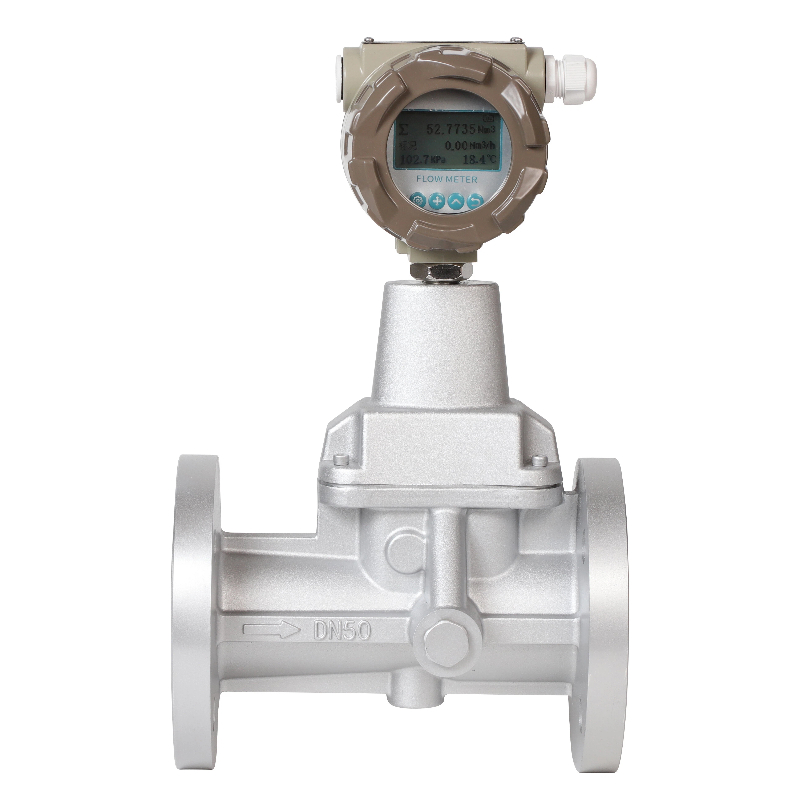

Intelligent swirl flow meter integrates the functions of flow, temperature and pressure detection, and can automatically compensate the temperature, pressure and compression factors. It is an ideal instrument for gas metering in petroleum, chemical industry, electric power, metallurgy and other industries.
2.Main features
1)No mechanical moving parts, not easy corrosion, stable and reliable, long life, long running without special maintenance;
2)Using 16-bit single chip, high integration, small size, good performance, the whole machine function is strong;
3)Set intelligent flow meter flow sensor, microprocessor, pressure and temperature sensor, adopt built-in combination, make the structure more compact, can directly measure the fluid flow, pressure and temperature, and automatic tracking compensation and real-time compression factor correction;
4)Using characters dot matrix display screen, display digits, more intuitive reading convenient, can be directly display instantaneous flow instandard condition, the total volume flow, pressure, temperature.
5)Using EEPROM technology, convenient parameter Settings, can be permanent, and can save up to a year of historical data;
6)Converter can output pulse frequency, 4 ~ 20 ma analog signals, with RS485 interface, can be directly with the computer networking, transmission distance of 1.2 km;
7)Physical parameter alarm output more, can choose any one of them by the user;
8)The sensor input pressure and temperature signal, strong interchangeability.
9)Machine low power consumption, can be used in batteries, also can be an external power supply.
3.Technical parameters

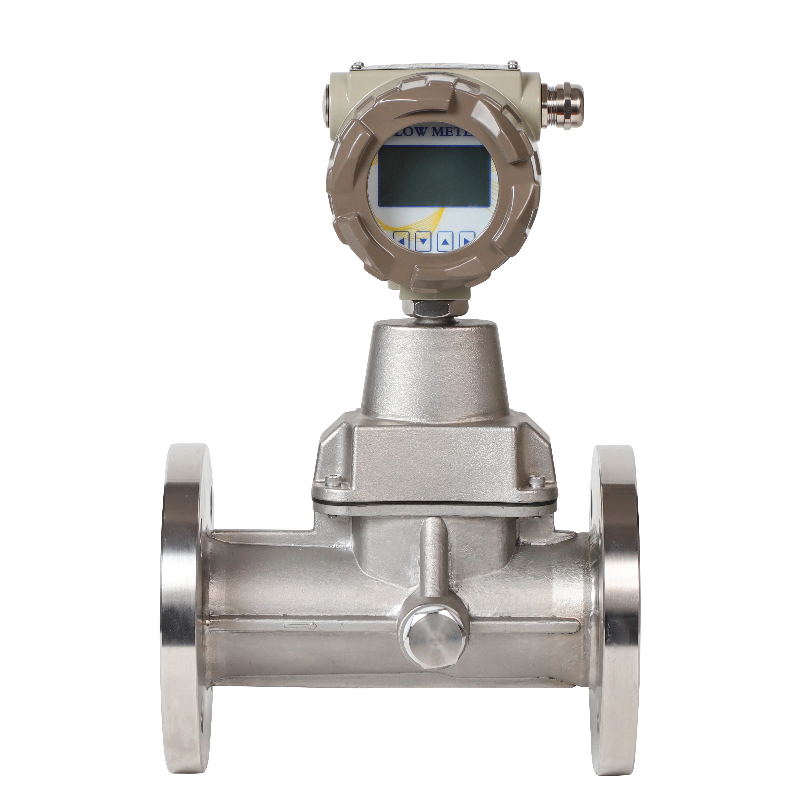

Material
Aluminum alloy
Stainless steel
Accuracy
1.5%
Diameter (MM)
DN15-DN200
Output
Standard : 4-20mA / Pulse. Option: RS485
Press
1.6Mpa or Customized
Power
24VDC
Connection
Thread or Flange
Protection level
IP65
Compensation
Has temp. and pressure sensor, so it can temp. and pressure compensation automatically.
4.Flow range
Model
Diameter(mm)
Flow Range(m3/h)
Working Pressure
Accuracy
LUXB-15
15
1.0-10
1.6
2.5
4.0
6.3
10
16
1.5
1.0
LUXB-20
20
1.5-15
LUXB-25
25
3.0-30
LUXB-32
32
6.0-60
LUXB-40
40
7-70
LUXB-50
50
12-150
LUXB-65
65
15-170
LUXB-80
80
40-400
LUXB-100
100
80-800
LUXB-150
150
150-1500
LUXB-200
200
360-3600

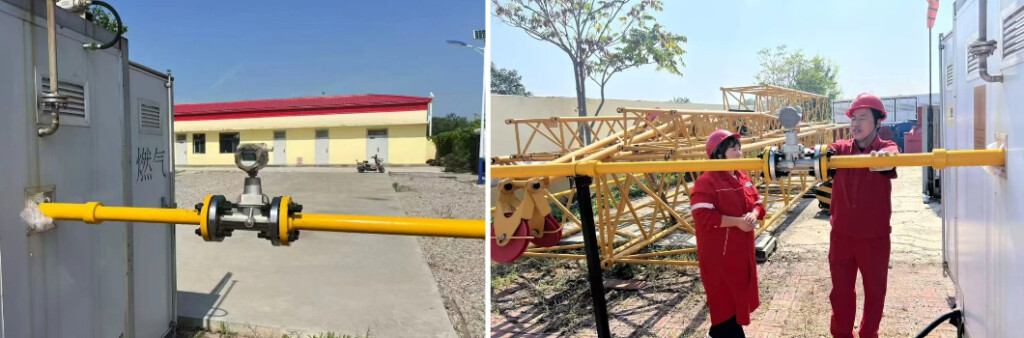

5.Product application
Precession vortex flowmeter is mainly used for gas measurement.
1)Urban gas: The trade settlement and process control of natural gas and artificial gas are common choices for metering at urban gate stations and industrial and commercial users.
2)Industrial gas: Measuring compressed air, oxygen, nitrogen, argon, hydrogen, liquefied petroleum gas (LPG), etc.
3)Energy industry:
Measurement of associated gas and flare gas in oil extraction.
Coal mine gas drainage metering.
Gas consumption measurement for boilers and kilns.
4)Chemical Engineering and Process Industry: Flow measurement of process gases in various production processes.
