Material: SUS304 or aluminum alloy
Medium: Natural gas, compressed gas, city gas, air, etc.
Fluid temp.: -20 – +80℃
Output: Pulse, 4-20mA, RS485
Power: 24VDC
Categories: Gas Flow Meter

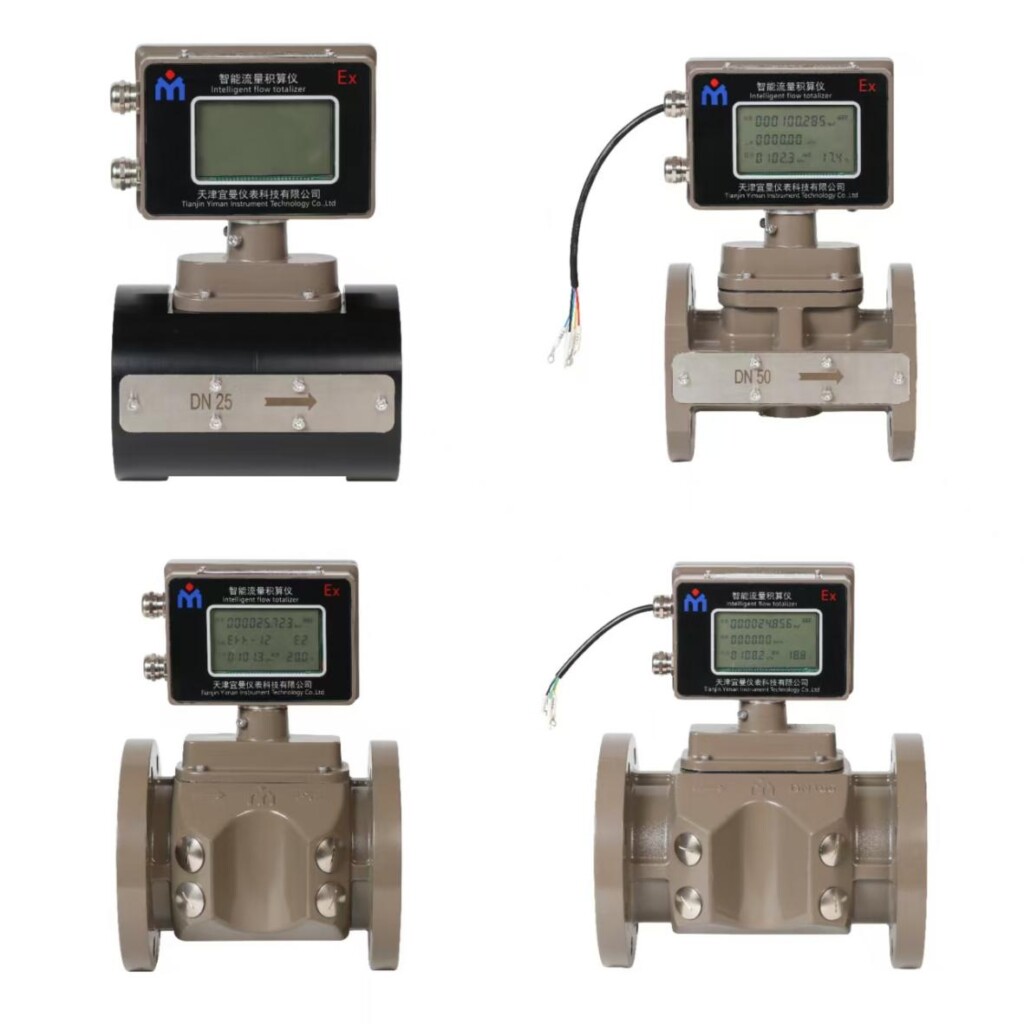

YMQ series gas ultrasonic flowmeter is produced using advanced German technology, and all its key components are imported with original equipment, which has the characteristics of high reliability and long service life. It is a new type of precision measuring instrument with high precision and reliability. It can be widely used for gas flow measurement in industries such as urban gas, petroleum, chemical, power, metallurgy, etc.
YMQ series gas ultrasonic flowmeter adopts a unique multiplexed channels design, which can eliminate the influence of eddy currents and asymmetric flows. The multiplexed channel adds redundant backup channels to improve the reliability of the system. Compliant with Chinese standard GB/T 32201-2015.
Made with German Advanced Technology
Multiplex Channel Measurement
Eddy Current and Asymmetric Flow Detection
Laminated shielding of electric and magnetic fields, high noise immunity
Zero drift automatic correction, accuracy is not affected by the environment
Measurement accuracy grade: 1.0
Comply with Chinese Standard GB/T 32201-2015.
Ultra-wide range ratio
Ultra-low “zero” starting flow rate
The metering range can cover Roots meter and turbine meter.
Double backup lithium battery power supply
High precision temperature and pressure compensation, volume correction
Intelligent switching of various gas working conditions and standard temperature and pressure
Mass storage, can save data for one year
Intelligent fault detection, fault alarm
Maintenance-free, cleaning-free, long service life
The meter can be rotated 350 degrees to facilitate reading.
| Material | Aluminum alloy | Stainless steel |
| Accuracy | 1.0% , Repeatability: 0.2% | |
| Measuring range | From 1-40m3/h to 36-2000m3/h | |
| Diameter (MM) | DN25-DN200 | |
| Input signal | Flow signal: 200 KHz±10%
Temperature signal: analog signal output by temperature sensor Pressure signal: analog signal output by pressure sensor |
|
| Output | 4-20mA / RS485 | |
| Press | 1.6Mpa, Option (2.5MPa) | |
| Power | 24VDC or 3.6V Lithium battery | |
| Power consumption | Internal power supply: average power consumption ≤1.5mW,
two lithium batteries can be used continuously for more than 6 years. External power supply: average power consumption ≤1W |
|
| Connection | Flange | |
| Diameter
DN（mm） |
Item | Flow range
(m3/h) |
Accuracy
（m3/h） |
| 25 | YMQ-25 | 1-40 | 1% |
| 32 | YMQ-32 | 2-50 | |
| 40 | YMQ-40 | 2-100 | |
| 50 | YMQ-50 | 4-160 | |
| 65 | YMQ-65 | 7-180 | |
| 80 | YMQ-80 | 8-400 | |
| 100 | YMQ-100 | 10-650 | |
| 150 | YMQ-150 | 20-1400 | |
| 200 | YMQ-200 | 36-2000 |
Gas ultrasonic flowmeters, with their outstanding performance, are becoming the mainstream choice for large-diameter gas flow measurement and are used in the following fields.
1)Natural gas trade Applications
2)Oil and gas field production and gathering and transportation
3)Gas storage and peak shaving
4)Process Control and Energy Management
5)Leak detection and pipeline monitoring
