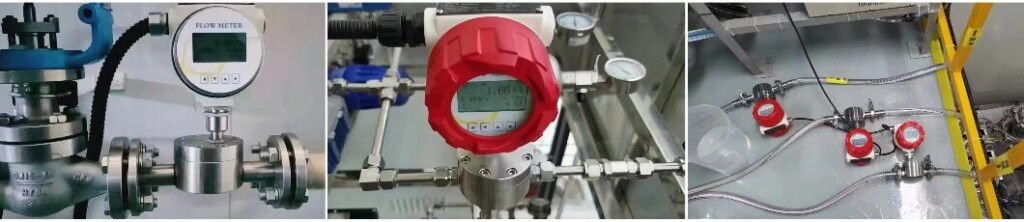

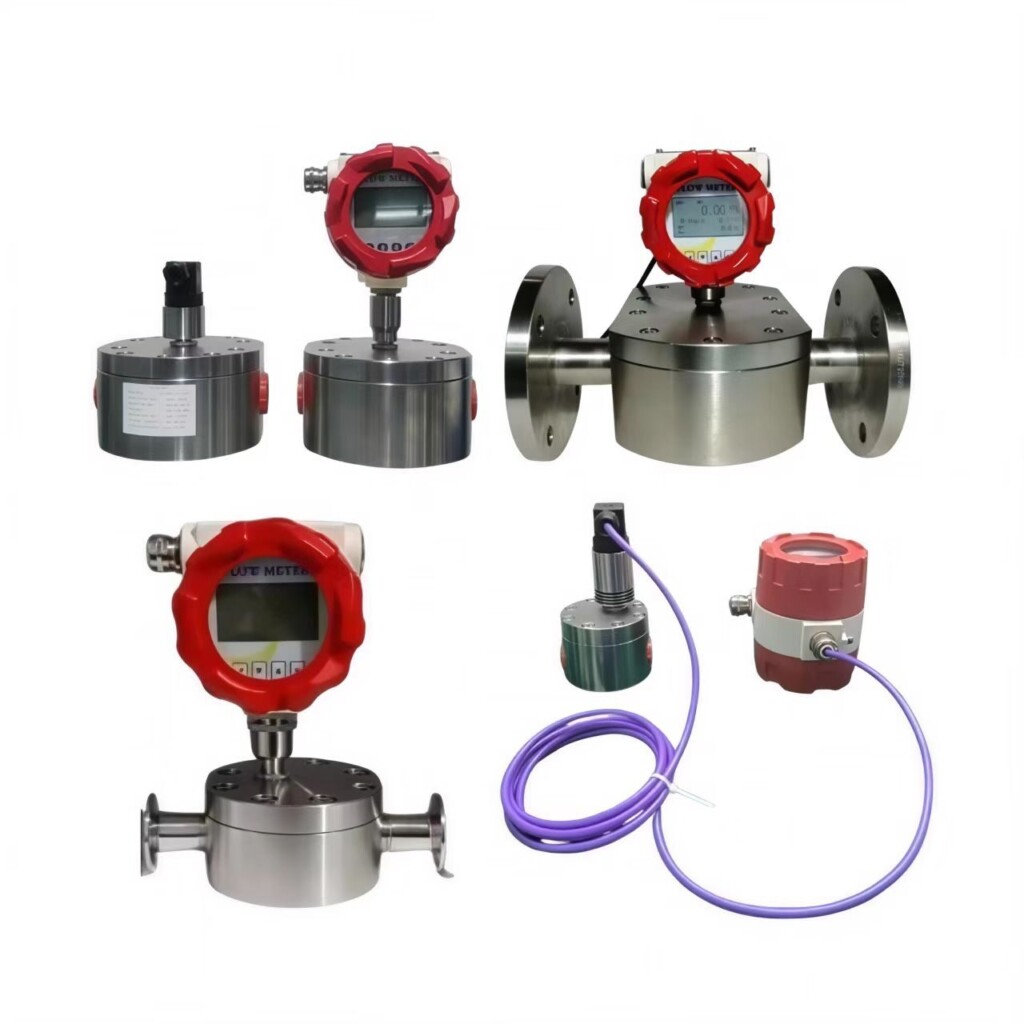

1.Overview Gear flow meter belongs to a kind of volumetric flow meter and can be used for measuring volume and flow precisely. The flowing medium makes the gear engage and rotate. Under the flowing effect of fluid, pressure difference is formed between the inlet and outlet of instrument. One pair of gears can rotate freely without the need of power supply. The empty cavity between gears is filled with liquid, which is discharged through rotation. The liquid flowing through instrument and liquid flow can be known through measuring the number of revolutions of gear. 2.Product Characteristics: ⚫ High pressure resistance (1.0~45MPa) ⚫ High and low temperature resistance (-20°C~200°C) ⚫ Able to measure different kinds of viscous media. ⚫ High precision and repeatability ⚫ Impulse output/ Analog output available ⚫ Broad range of measurement ⚫ Strong corrosion and pollutant resistance (acid and alkaline) ⚫ Microprocessor type transmitter ⚫ 8 digits for totalizer typed of reset. ⚫ Self-check function 3.Scope of Application  ⚫ Measurement of resin and glue ⚫ Measurement of hydraulic oil, lubricating oil and grease ⚫ Measurement of fuel oil ⚫ Measurement of printing ink and asphalt ⚫ Measurement of liquid nitrogen, refrigerant and solvent ⚫ Measurement of edible oil, fish oil and food canning ⚫ Measurement of chemical fluid or fluid with corrosion resistance requirements ⚫ Fluid quantitative control system 4.Flow range

Model	Diameter (mm)	Flow range (L/H)	Temperature	Accuracy	Connect
GF02	2	0.6-50	-20-80℃	1.0% (range:1：100） 0.5% (range:1:10)	G1/4
GF04	4	5-250			G3/8
GF06	6	10-500			G1/2
GF10	10	50-1200			G1/2
GF15	15	200-3000			G3/4
GF25	25	1000-12000			G1
GF32	32	2000-20000			G1-1/4

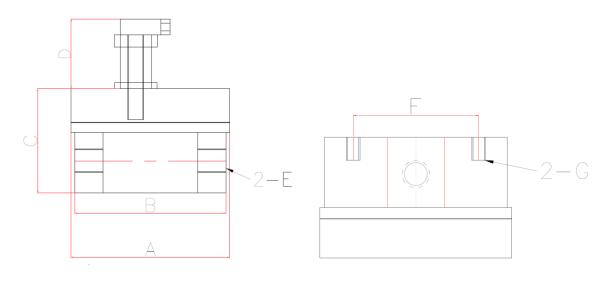

 5.Outline Drawing

Size Model	A	B	C	D	E	F	G	H
GF02	Φ83	80	55	70	G1/4	40	M6	16
GF04	Φ83	80	55	70	G3/8	55	M6	16
GF06	Φ83	80	62	70	G1/2	55	M6	14
GF10	Φ83	80	65	70	G1/2	55	M6	14
GF15	Φ113	110	65	70	G3/4	90	M6	28
GF25	Φ158	140	85	70	G1	110	M8	40
GF32	Φ218	160	100	70	G1-1/4	180	M8	45
